A Practical Approach to Enriching the Standard Library of GameMaker Studio 2

By exploiting an undocumented feature of macros in GameMaker Language (GML), calls to standard library functions can be intercepted in order to help implement missing features.

§ Preface

This post goes into detail about an undocumented feature of GML, originally brought to my attention by Zach Reedy. Since this feature is undocumented, it wouldn't be wise to depend entirely on any topics discussed throughout this post, in case something changes in the future or there are inconsistencies between target platforms.

§ The Problem

Like many libraries, there are gaps in the set of built-in functions provided by GameMaker. This is typically due to the low-priority of niche functionality; for instance, there exists functions for setting the minimum and maximum size of the game window¹, but (currently) no functions for getting these values back in case they were updated somewhere else in the codebase.

One method to circumvent this would be to maintain a set of global variables; ones that would store the current minimum and maximum size of the window. These global variables could then be accessed in order to obtain the current window size. The following example illustrates how such an approach could be applied:

global.windowMinWidth  = -1;
global.windowMinHeight = -1;

function set_min_size(width, height) {
  window_set_min_width(width);
  window_set_min_height(height);
  global.windowMinWidth  = width;
  global.windowMinHeight = height;
}

A helper function set_min_size is implemented which sets the minimum size of the window. The corresponding minimum width and height of the window can then be tracked using the global variables windowMinWidth and windowMinHeight respectively. However, this approach only works well if you trust yourself and your collaborators to maintain synchronisation between the global variables and the actual window size. This ultimately requires prohibiting the use of both window_set_min_width and window_set_min_height by team members; any violation of this rule would result in difficult to track bugs.

§ The Solution

An alternative approach to this problem is to use macros to override existing built-in functions, whilst preserving a reference to the original function. In other words, opaquely extending existing built-in functions with additional behaviour; for instance, extending window_set_min_width and window_set_min_height such that their associated global variables get automatically updated:

window_set_min_width(100);  // automatically updates `windowMinWidth` to 100
window_set_min_height(100); // automatically updates `windowMinHeight` to 100

In some ways this is superior compared to the previous approach, because it does not prohibit the use of window_set_min_width and window_set_min_height. Everything the set_min_size function did is being performed behind the scenes for the user.

§§ Implementation Details

As shown in a previous blog post, built-in functions and variables can be overridden using macros. However, this had limited applications because it caused the original reference to the built-in function to become unreachable. As a result, the original behaviour of the function was lost:

#macro show_debug_message overrides_show_debug_message

function overrides_show_debug_message(str) {
  var file = file_text_open_append("game.log");
  file_text_write_string(file, str);
  file_text_writeln(file);
  file_text_close(file);
}

The show_debug_message typically displays a message in the console window; this example will override the show_debug_message function with a custom implementation that appends the message to a log file. This results in no debug messages being displayed in the console window, since the original functionality has been overwritten. This is not ideal, because the goal was to add additional functionality on top of existing functions, not to replace their functionality entirely; therefore, a method of preserving the reference to the original built-in function is required.

The new method avoids these pitfalls by including an additional macro that acts as a replacement alias for the built-in function. The function definition can then be updated such that both the original and custom implementations of the function are performed:

#macro BUILTIN_SHOW_DEBUG_MESSAGE show_debug_message
#macro show_debug_message overrides_show_debug_message

function overrides_show_debug_message(str) {
  BUILTIN_SHOW_DEBUG_MESSAGE(str); // call the original implementation
  var file = file_text_open_append("game.log");
  file_text_write_string(file, str);
  file_text_writeln(file);
  file_text_close(file);
}

The macro BUILTIN_SHOW_DEBUG_MESSAGE acts as a new alias for the show_debug_message function. This alias is then used within the overrides_show_debug_message function in order to call the original implementation. As a result, the show_debug_message function will now first display the message to the console before writing it to the log file.

Applying this technique to the window example, the following code can be produced:

// preserve the original built-in function references
#macro BUILTIN_WINDOW_SET_MIN_WIDTH  window_set_min_width
#macro BUILTIN_WINDOW_SET_MIN_HEIGHT window_set_min_height

// override the current function with a custom user-defined function
#macro window_set_min_width  overrides_window_set_min_width
#macro window_set_min_height overrides_window_set_min_height

global.windowMinWidth  = -1;
global.windowMinHeight = -1;

// implement function overrides
function overrides_window_set_min_width(width) {
  BUILTIN_WINDOW_SET_MIN_WIDTH(width); // call the original implementation
  global.windowMinWidth = width;       // update internal record
}
function overrides_window_set_min_height(height) {
  BUILTIN_WINDOW_SET_MIN_HEIGHT(height);
  global.windowMinHeight = height;
}

Using the window_set_min_width and window_set_min_height functions will now automatically update their corresponding global variables, without any additional functions from the perspective of the library user.

§§ Hiding Implementation Details

Although not strictly required, in the interest of making it difficult to de-synchronise the global variables, the public interface can be restricted; for example, verbose names could be given to the global variables. Their values would then be exposed using shorter, more appealing user-defined getter functions window_get_min_width and window_get_min_height:

global.__internalWindowVariable_windowMinWidth  = -1;
global.__internalWindowVariable_windowMinHeight = -1;

function window_get_min_width() {
  return global.__internalWindowVariable_windowMinWidth;
}
function window_get_min_height() {
  return global.__internalWindowVariable_windowMinHeight;
}

Since getter functions return a copy of the values stored in the global variables, there is no risk of accidentally modifying them, and hence desynchronising their values. This essentially reduces the likelihood of a team member making a mistake, by increasing the effort required to type out the names of protected global variables. Similarly, this could be applied to the macro definitions and function overides in order to coerce users into only using the getter and setter functions.

Note: since many auto-complete engines order underscores after letters alphabetically, any identifiers starting with an underscore will usually appear at the end of the list. This further increases the effort required to make a mistake when using the library.

§ Experiments

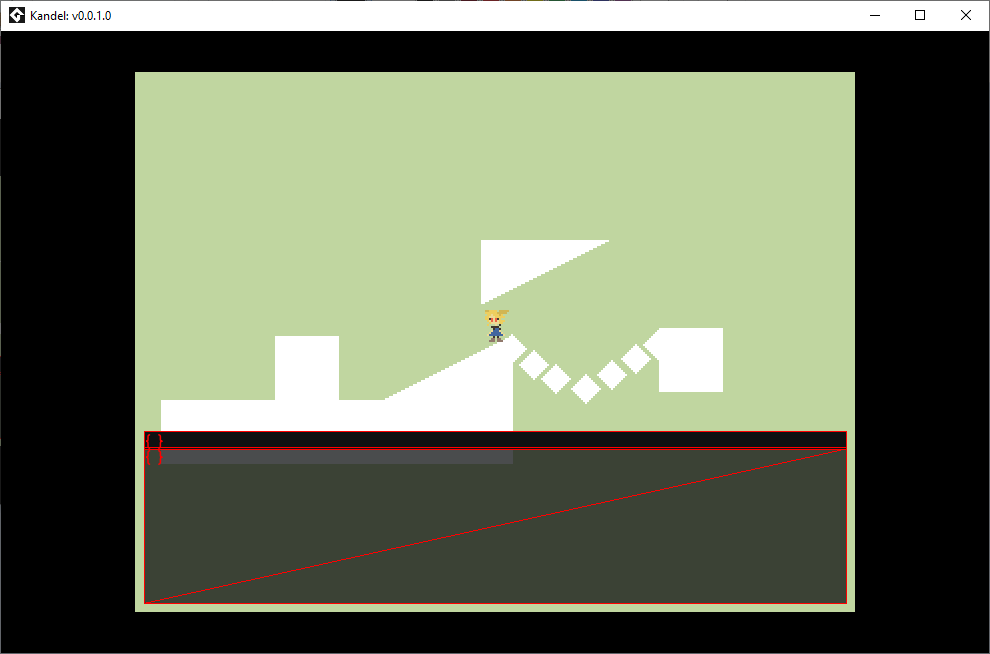

Figure 1. Pixel-perfect scaling with a high-resolution GUI layer

A few experiments can be found on GitHub that extend the GameMaker standard library. A list of functions that have been implemented include:

• application_set_position — Enables setting an exact region to render the application surface.
• application_set_position_fixed — Similar to application_set_position, except preserving aspect ratio.
• display_set_gui_position — Enables setting an exact region and scale to draw the GUI in.
• network_get_config — Enables getting network configurations set by the user.

All extensions have seen practical use in projects I've been a part of. Most importantly, display_set_gui_position lifts a restriction of the current GUI functions, requiring that either the offset or scale of the GUI could be set, but not both simultaneously². In conjunction with application_set_position_fixed, these extensions allow for low-resolution games to scale "pixel-perfectly," whilst also enabling a high-resolution GUI. An example of this is shown in Figure 1.

Also included in the repository is a singleton system, which overrides the built-in instance functions in order to prevent multiple singletons of the same type from being created, and to offer deactivation immunity to system objects. This can help reduce the likelihood of bugs related to system objects from occurring.

§ Summary

This post has discussed an interesting undocumented feature of macros, and how it can be used to fill gaps within the GameMaker standard library. This approach also shows promise in reducing potential bugs by hiding the job of synchronising global variables with expected inputs to built-in functions.
